รายละเอียดสินค้า
สถานที่กำเนิด: มณฑลหูเป่ย์ ประเทศจีน
ชื่อแบรนด์: KAEMI or GM
เงื่อนไขการชําระเงินและการจัดส่ง
ราคา: $4,115.00/sets 1-2 sets
สภาพ: |
ใหม่ |
อุตสาหกรรมที่ใช้: |
โรงแรม ร้านเสื้อผ้า โรงงานผลิต ร้านซ่อมเครื่องจักร ของใช้ในบ้าน ร้านค้าปลีก ร้านพิมพ์ บริษัทโฆษณา ผล |
น้ําหนัก (kg): |
400 |
ที่ตั้งโชว์รูม: |
เวียดนาม |
วิดีโอการตรวจออก: |
จําหน่าย |
รายงานการทดสอบเครื่องจักร: |
จําหน่าย |
ประเภทการตลาด: |
สินค้าใหม่ 2020 |
การรับประกันส่วนประกอบหลัก: |
2 ปี |
ส่วนประกอบหลัก: |
เครื่องยนต์, มอเตอร์, ไดร์เวอร์ และเมนบอร์ด |
การรับประกัน: |
1 ปี สำหรับเครื่องทั้งหมด |
ชื่อสินค้า: |
เครื่องตัด CNC สำหรับเครื่องนุ่งห่ม GM1509M5DU |
โครงและตัวเครื่องเครื่องตัด: |
กรอบสีฟ้า+เคสสีเงิน |
วัสดุตัวเครื่อง: |
เคาน์เตอร์ท็อปอลูมิเนียมทั้งหมด |
วัสดุตัด: |
PVC, PP, POM, อะคริลิค, PET, คราฟท์ ฯลฯ |
เครื่องมือตัด: |
เครื่องกัด เครื่องแกะสลัก เครื่องเจาะ เครื่องเจาะแบบปากกา |
ขอบเขตการตัด: |
1500*900มม. |
ความหนาของการตัด: |
≤1.5มม.-6.0มม. |
ความเร็วตัด: |
500-1800 มม./วินาที |
ขนาดเครื่องตัด: |
1900*1450*1100มม. |
สาขาหรืออุตสาหกรรมที่สามารถนำไปใช้ได้: |
เสื้อผ้า,กระเป๋า,กระเป๋าถือ,เฟอร์นิเจอร์,ของตกแต่งรถ,กล่องกระดาษ |
สภาพ: |
ใหม่ |
อุตสาหกรรมที่ใช้: |
โรงแรม ร้านเสื้อผ้า โรงงานผลิต ร้านซ่อมเครื่องจักร ของใช้ในบ้าน ร้านค้าปลีก ร้านพิมพ์ บริษัทโฆษณา ผล |
น้ําหนัก (kg): |
400 |
ที่ตั้งโชว์รูม: |
เวียดนาม |
วิดีโอการตรวจออก: |
จําหน่าย |
รายงานการทดสอบเครื่องจักร: |
จําหน่าย |
ประเภทการตลาด: |
สินค้าใหม่ 2020 |
การรับประกันส่วนประกอบหลัก: |
2 ปี |
ส่วนประกอบหลัก: |
เครื่องยนต์, มอเตอร์, ไดร์เวอร์ และเมนบอร์ด |
การรับประกัน: |
1 ปี สำหรับเครื่องทั้งหมด |
ชื่อสินค้า: |
เครื่องตัด CNC สำหรับเครื่องนุ่งห่ม GM1509M5DU |
โครงและตัวเครื่องเครื่องตัด: |
กรอบสีฟ้า+เคสสีเงิน |
วัสดุตัวเครื่อง: |
เคาน์เตอร์ท็อปอลูมิเนียมทั้งหมด |
วัสดุตัด: |
PVC, PP, POM, อะคริลิค, PET, คราฟท์ ฯลฯ |
เครื่องมือตัด: |
เครื่องกัด เครื่องแกะสลัก เครื่องเจาะ เครื่องเจาะแบบปากกา |
ขอบเขตการตัด: |
1500*900มม. |
ความหนาของการตัด: |
≤1.5มม.-6.0มม. |
ความเร็วตัด: |
500-1800 มม./วินาที |
ขนาดเครื่องตัด: |
1900*1450*1100มม. |
สาขาหรืออุตสาหกรรมที่สามารถนำไปใช้ได้: |
เสื้อผ้า,กระเป๋า,กระเป๋าถือ,เฟอร์นิเจอร์,ของตกแต่งรถ,กล่องกระดาษ |

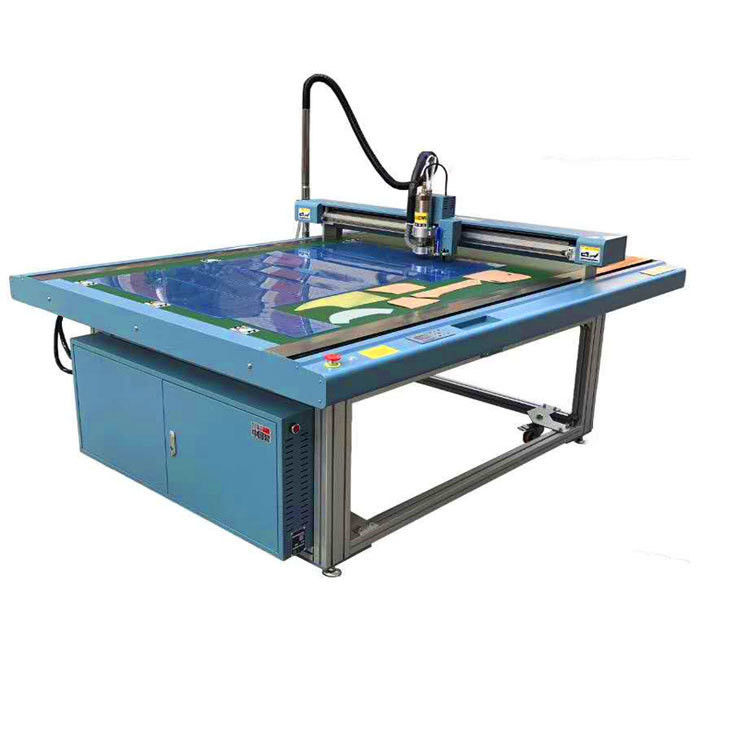

Main Features:
1. All-aluminiumn Profile Fuselage; Compact and Reasonable; More Stable
2.Global Initiative: Smart Accidental Power Off/Power Cut Data Recovery System(Avoid Cutting Materials Wasting)
3.One Key Intelligent Fixture+Multi-point Zone Adsorption System
4.Multi-layer at One-time Cutting
5.Integrated Floating Pressure Foot and Vacuum Cleaning Technology
6.Flexible Modification System for Cutting Starting Points and Cutting Sequence
7.Independent Templates Editing and Designing System
Model | GM-1509M5 | GM-1512M5 | GM1812M5 |
Cutting Window(Fabric Scope) | 1500*900mm | 1500*1200mm | 1800*1200mm |
Overall Dimension(mm) | 2000*1570*1100 | 2000*1770*1100 | 2300*1770*1100 |
Product Features | Compatible with various CAD softwares;Design while the machine is cutting | ||
Cutting Speed | 500-1800mm/s | ||
Cutting Thickness | ≤1.5mm-6.0mm | ||
Cutting Materials | PVC, PP,POM,Acrylic, PET, Kraft, etc | ||
Processing Methods | Mill, Cut, Drill, Plot | ||
Cut Tools | Mill-cutter, Graver, Driller, Pen | ||
Repeatability Precision | ≤0.01mm | ||
Software Resolution | 0.025mm/0.01mm/0.1mm(Optional) | ||
Communication Port | USB/RJ45 Ethernet | ||
Buffer Memory Size | 1M/8M/32M(Can butter more than 1 page) | ||
File Formats | DXF/HPGL/GPGL/PLT Formats Compatible | ||
Control Panel | 9 Keys and LED Display | ||
Driver System | Moons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam | ||
Supply Voltage | AC 220V/110V±10%, 50Hz/3.5KW | ||
Fuse Value | 30A/35A | ||
Working Environment | -30~55℃ or -22~131℉ | ||
Fasten | Vacuum/Clamping | ||
Mill Motor | 800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter | ||
Waste Elimination | 220V/1.4KW, Industrial 15L Vacuum Cleaner |
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter.
"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing
industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.
1. Q: Are you a manufacturer?
A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for 10 years.
2. Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
4.Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype
5.Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days
